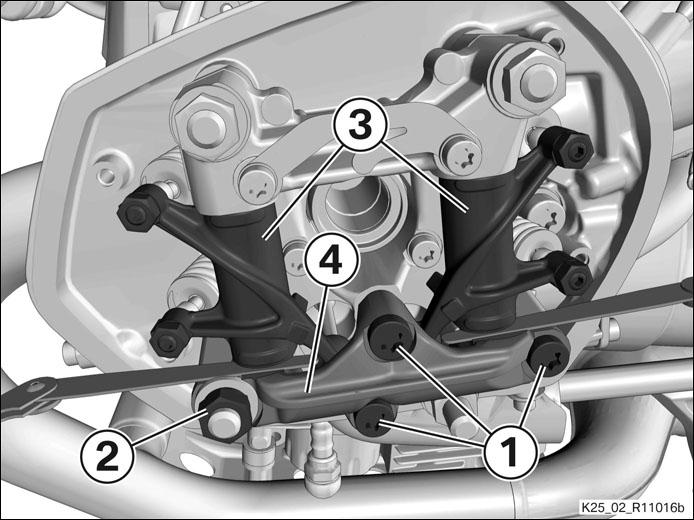

Adjusting rocker-arm endplay (cylinder-head cover removed)
|
| |
(-) Adjusting endplay of rocker arms
|
|
|
|
Slacken screws (1) and nut (2). |
|
|
|
Using a feeler gauge, set the endplay of rocker arms (3)
by moving bearing cap unit (4) to MIN. |
|
| Technical
data |
|
Rocker arm endplay |
|
0.05...0.4 mm |
|
|
|
Slightly tighten screws (1) and nuts (2). |
|
|
|
Recheck endplay. |
|
|
|
Tighten screws (1) and nut (2). |
|
| Tightening
torques |
|
Bearing cap to timing-gear carrier |
|
M8 x 30 |
18 Nm |
|
|
M8 x 40 |
18 Nm |
|
|
Nut, tie bolt, M10 |
Closing torque, 20 Nm |
|
|
Initial torque, 90° |
|
Final torque, 90° |
|
|
