Alla olevat tiedot löytyvät Repair Manuals (6. edition, 03/2011) BMW Mottorarad R Models K2x GS

Technical data 0380 - R 1200 GS Adventure



KG - General maintenance and construction groups



Designation

Condition

FR

Valid

Length of motorcycle

Across luggage carrier

2240 mm



Top speed



>200 km/h



Front-seat height

At unladen weight

890...910 mm



Height of motorcycle

Over windscreen, at DIN unladen weight

1525 mm



Width of motorcycle

Across handlebars

940 mm



Unladen weight

DIN unladen weight, ready for road 90 % load of fuel, without optional extras

256 kg



rider's inside-leg arc, heel to heel



1960...2000 mm



Maximum payload



219 kg



Wheel track offset

+ = rear wheel to right;



None



Permissible gross weight



475 kg







11 - Engine



Designation

Condition

FR

Valid

Engine design



Four-stroke opposed twin, air-cooled with oil-cooled exhaust ports, installed longitudinally, two overhead camshafts, electronic engine management



Displacement



1170 cm3



Location of engine number



On crankcase, at front right underneath cylinder



Compression ratio



12.0 : 1



Direction of crankshaft rotation

As viewed toward power-output end

Counter-clockwise



Idle speed



1150

+ 150
50

 min-1





Nominal output

Over 7500 min-1

77 kW



Cylinder bore



101 mm



Torque

Over 5750 min-1

116 Nm



Piston stroke



73 mm



Compression test pressure

Good

10 bar



Normal

8.5...10 bar

Poor

<8.5 bar

Maximum engine speed



max 8000 min-1



Running-in speed



<4000 min-1



Engine oil, capacity

with filter change

max 4.0 l



Fluids and lubricants

of products recommended by BMW Motorrad and generally admissible viscosity classes

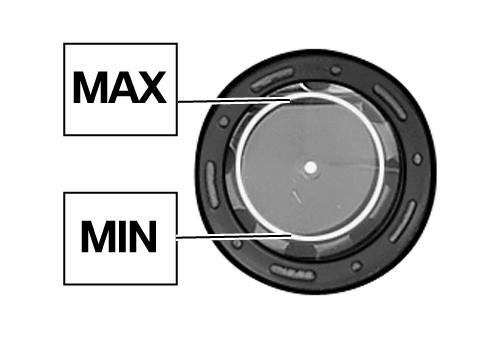

Engine oil, specified level

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad\BILD\1140\MODELLE\00\K25BA_11_00002b.jpg



Between MIN and MAX marks



Engine oil, quantity for topping up

Difference between MIN and MAX

max 0.5 l



11 11 - Engine block

Cylinder type



Light-alloy cylinder, Nikasil-coated



Cylinder bore

Tolerance group A

When new

100.992...101.000 mm



Wear limit

max 101.050 mm

Permitted out-of-roundness of cylinder bore

from top edge 20 mm

max 0.01 mm



from top edge 100 mm

max 0.015 mm

Cylinder bore

Tolerance group B

When new

101.000...101.008 mm



Wear limit

max 101.058 mm

Cylinder bore

Tolerance group AB

When new

100.992...101.008 mm



Wear limit

max 101.058 mm

Piston and cylinder total wear clearance



max 0.12 mm



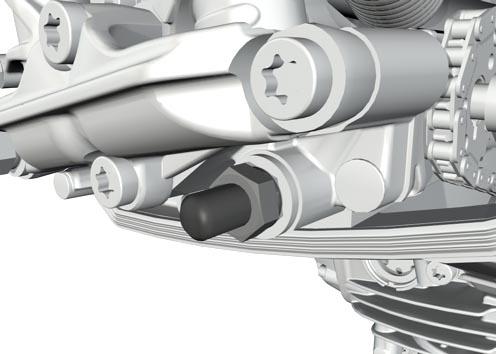

Projecting length of thread of tie bolt


left cylinder, bottom inlet valve

16.5 mm

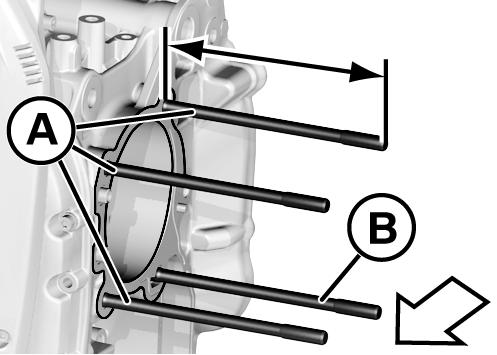

Projection of tie bolts

for cylinder in left-hand side of crankcase

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad\BILD\1111\MODELLE\00\K29_HP_B111101b.jpg

A

232.5

+ 1
1

 mm





B

222

+ 1
1

 mm



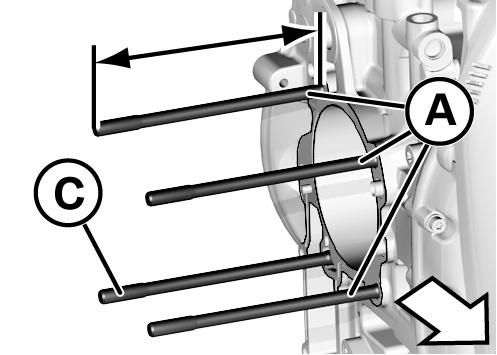

Projection of tie bolts

for cylinder in right-hand side of crankcase

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad\BILD\1111\MODELLE\00\K29_HP_B111102b.jpg

A

232.5

+ 1
1

 mm





C

212

+ 1
1

 mm



11 12 - Cylinder head with cover

Radial play of exhaust-valve guide

When new

0.030...0.056 mm



Wear limit

max 0.17 mm

Radial play of inlet-valve guide

When new

0.020...0.046 mm



Wear limit

max 0.15 mm

Valve guide inside diameter



5.000...5.012 mm



11 21 - Crankshaft with bearings

Grinding stages of crankshaft guide bearing

Grinding stage 0

0 mm



Grinding stage 1

-0.25 mm

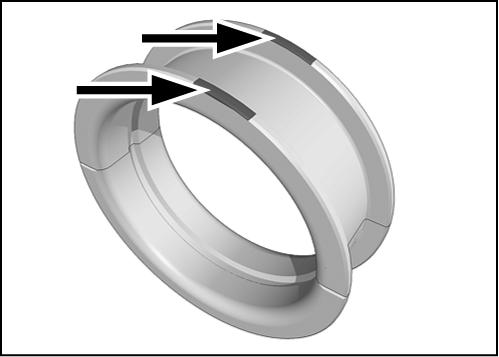

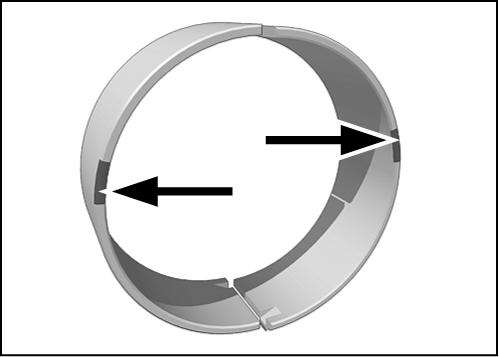

ID marks of crankshaft baring

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad\BILD\11\MODELLE\00\K25HPTD_11_003b.jpg



Colour mark on outside



Grinding stages of crankshaft main bearing

Grinding stage 0

0 mm



Grinding stage 1

-0.25 mm

Radial play of crankshaft guide bearing



0.018...0.046 mm



Marking of main bearing and crankpin on front crank web

Grinding stage 0

Without colour mark



Marking of main bearing and crankpin on front crank web

Grinding stage 1

With colour mark



Crankpin grinding stages

Grinding stage 0

0 mm



Grinding stage 1

-0.25 mm

Radial play of crankshaft main bearing

When new

0.018...0.068 mm



Radial play of crankshaft main bearing

Wear limit

max 0.13 mm



Diameter of crankshaft main bearing, tolerance group "green"

Grinding stage 0

59.964...60.003 mm



Diameter of crankshaft main bearing, tolerance group "yellow"

Grinding stage 0

59.974...60.013 mm



Diameter of crankshaft main bearing, tolerance group "green"

Grinding stage 1

59.714...59.753 mm



Diameter of crankshaft main bearing, tolerance group "yellow"

Grinding stage 1

59.724...59.763 mm



Bearing journal diameter in crankshaft main bearing, tolerance group "green"

Grinding stage 0

59.939...59.948 mm



Bearing journal diameter in crankshaft main bearing, tolerance group "yellow"

Grinding stage 0

59.949...59.958 mm



Bearing journal diameter in crankshaft main bearing, tolerance group "green"

Grinding stage 1

59.689...59.698 mm



Bearing journal diameter in crankshaft main bearing, tolerance group "yellow"

Grinding stage 1

59.699...59.708 mm



Crankpin diameter

Grinding stage 0

47.975...47.991 mm



Crankpin diameter

Grinding stage 1

47.725...47.741 mm



Crankshaft endplay

When new

0.08...0.163 mm



Crankshaft endplay

Wear limit

max 0.2 mm



11 24 - Conrod with bearings

Maximum deviation from parallel of conrod bores

spacing 150 mm

max 0.020 mm



Bore diameter of small-end bearing bore



22.015...22.025 mm



Conrod bearing, bore diameter



51...51.013 mm



Conrod bearing diameter



48.016...48.05 mm



Radial play of big-end bearing bore

When new

0.025...0.075 mm



Wear limit

max 0.130 mm

Width of big-end bearing bore



24.483...24.535 mm



Conrod endplay

When new

0.130...0.312 mm



Wear limit

max 0.500 mm

Radial play of small-end bearing bore

When new

0.015...0.030 mm



Wear limit

max 0.060 mm

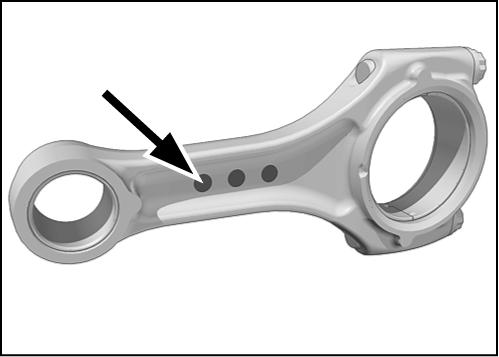

ID mark for conrod weight classes

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad\BILD\11\MODELLE\00\K25HPTD_11_005b.jpg

Colour-spot marks on side of conrod

white/blue/yellow

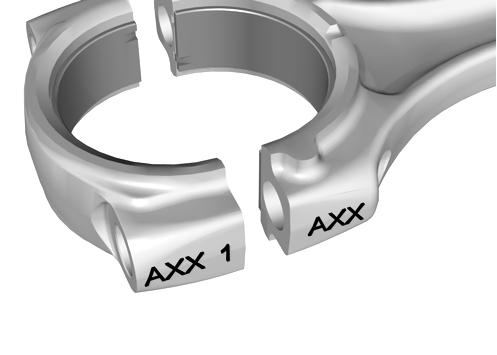

ID mark for conrod weight classes

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad\BILD\1124\MODELLE\00\K40_11_B111024a.jpg



Lettering on base of conrod



Conrod weight class 0

Colour code 2 x white

559...564.9 g



Conrod weight class 1

Colour code 2 x blue

565...570.9 g



Conrod weight class 2

Colour code 3 x white

571...576.9 g



Conrod weight class 3

Colour code 3 x yellow

577...582.9 g



Conrod weight class 4

Colour code 1 x blue

583...588.9 g



Colour codes for conrod bearings

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad\BILD\11\MODELLE\00\K25HPTD_11_001b.jpg

Bearing shell for conrod

Blue



Bearing shell for conrod cap

Red

11 25 - Piston with rings and pin

Piston, installed direction



Arrow on piston crown and/or cast lug pointing to exhaust side



Piston type



Cast light-alloy piston with three rings



Piston installation clearance

When new

0.011...0.035 mm



Wear limit

max 0.120 mm

Difference in piston weights within a weight class (weight classes 0 and +)

Complete with piston pin and piston rings

max 10 g



Piston diameter

Tolerance group A

When new, at right angles to piston-pin axis, across bottom edge of piston 6.0 mm

100.977...100.989 mm



Wear limit

min 100.900 mm

Piston diameter

Tolerance group B

When new, at right angles to piston-pin axis, across bottom edge of piston 6.0 mm

100.965...100.977 mm



Wear limit

min 100.890 mm

Piston rings, installed direction



"Top" marking uppermost



Piston diameter

Tolerance group AB

When new, at right angles to piston-pin axis, across bottom edge of piston 6.0 mm

100.973...100.981 mm



Wear limit

min 100.895 mm

Piston-pin bore diameter in piston



22.005...22.011 mm



Piston ring type, 1st groove



Taper-face compression ring



Piston ring height

1st groove

When new

1.175...1.190 mm



Wear limit

min 1.100 mm

Piston ring end gap

1st groove

When new

0.100...0.300 mm



Wear limit

max 0.800 mm

Piston ring float

1st groove

When new

0.030...0.065 mm



Wear limit

max 0.150 mm

Piston ring height

2nd groove

When new

1.175...1.190 mm



Wear limit

min 1.100 mm

Piston ring end gap

2nd groove

When new

0.10...0.30 mm



Wear limit

max 0.80 mm

Piston ring type, 2nd groove



Taper-face compression ring



Piston ring float

2nd groove

When new

0.030...0.065 mm



Wear limit

max 0.150 mm

Piston ring height

3rd groove

When new

2.475...2.490 mm



Wear limit

min 2.400 mm

Piston ring end gap

3rd groove

When new

0.30...0.60 mm



Wear limit

max 1.20 mm

Piston ring float

3rd groove

When new

0.020...0.055 mm



Wear limit

max 0.150 mm

Piston ring type, 3rd groove



Coiled-spring ring



Piston-pin radial play in piston

When new

0.015...0.030 mm



Wear limit

max 0.060 mm

Piston pin diameter

When new

21.995...22 mm



Piston pin diameter

Wear limit

min 21.96 mm



11 31 - Camshaft

Bore diameter for camshaft bearing

When new

21.020...21.040 mm



Endplay of camshaft

When new

0.08...0.13 mm



Wear limit

max 0.25 mm

Camshaft diameter in bearing

When new

20.970...21.000 mm



Radial play of camshaft

When new

0.02...0.07 mm



Wear limit

max 0.15 mm

Camshaft bearing width in guide bearing



16.000...16.050 mm



Camshaft bearing endplay in guide bearing

When new

0.080...0.130 mm



Camshaft bearing endplay in guide bearing

Wear limit

max 0.250 mm



Secondary shaft bore diameter in crankcase

front/rear



25.020...25.041 mm



Secondary shaft diameter

front/rear



24.959...24.980 mm



Secondary shaft radial play

When new

0.040...0.082 mm



Width of camshaft guide bearing cap



15.920...15.950 mm



Secondary shaft radial play

Wear limit

max 0.170 mm



11 32 - Tappets, pushrods

Bucket tappet radial clearance

When new

0.020...0.054 mm



Wear limit

max 0.180 mm

11 33 - Rocker/follower with bearing

Rocker shaft radial clearance

When new

0.032...0.054 mm



Wear limit

max 0.1 mm

Rocker arm endplay



0.05...0.4 mm



11 34 - Valves with springs

Inlet valve clearance

Engine cold max 35 °C

0.15 mm



Exhaust valve clearance

Engine cold max 35 °C

0.3 mm



Valve spring length

No load, when new

48.8 mm



No load, wear limit

min 45.2 mm

Diameter of inlet valve head



36.35 mm



Diameter of exhaust valve head



31 mm



Exhaust valve stem diameter

When new

4.956...4.970 mm



Wear limit

min 4.936 mm

Inlet valve stem diameter

When new



4.966...4.98 mm



Inlet valve stem diameter

Wear limit



min 4.946 mm



Exhaust valve stem diameter

When new



4.956...4.97 mm



Exhaust valve stem diameter

Wear limit



min 4.936 mm



Inlet valve stem diameter

When new

4.966...4.980 mm



Wear limit

min 4.946 mm

11 40 - Oil supply

Lubrication system type



Wet sump lubrication



Cut-in pressure, oil pressure telltale light

Telltale light ON if pressure is below

0.3...0.5 bar



Engine oil pressure

at oil temperature min 80 °C

6.5

+ 1
1

 bar





Opening pressure of pressure relief valve of oil circuit in crankcase

Valve opens if pressure exceeds

6.5 bar



Pressure differential needed to open bypass valve



2.5

+ 0.3
0.3

 bar

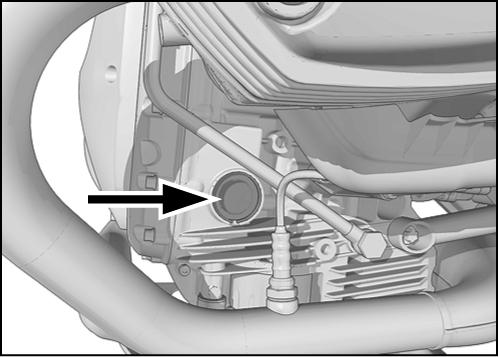

Position of engine oil level sight glass

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad\BILD\11\MODELLE\00\K25HPTD_11_008b.jpg



in crankcase, bottom left



11 41 - Oil pump with strainer and drive

Oil pump type



2 duocentric pumps



Oil pump endplay

When new

0.04...0.10 mm



Wear limit

max 0.25 mm

Rotor height, cooling oil pump



10.95...10.98 mm



Rotor height, lubricating oil pump



9.95...9.98 mm



11 61 - Intake elbow

Intake stub diameter



42 mm







12 - Engine electrical system



Designation

Condition

FR

Valid

Type of Ignition system

electronic map-controlled ignition, integrated in the engine management system

BMSK



12 12 - Ignition wiring, spark plugs

Spark plugs, manufacturer and designation



NGK DCPR 8 EKC



Electrode gap of spark plug

When new

0.8

+ 0.1
0.1

 mm





Wear limit

max 1 mm

Secondary spark plugs, manufacturer and designation



NGK DCPR 8 EKC



Electrode gap of secondary spark plug

When new

0.8

+ 0.1
0.1

 mm





Wear limit

max 1 mm

12 13 - Ignition coil

Ignition coil type



Direct-ignition coil



Ignition coil, primary resistance

when cold

0.87 Ω



Secondary ignition coils, manufacturer and type



Angled ignition coil



Secondary ignition coil, primary resistance

when cold

0.87 Ω



12 31 - Alternator with drive and fasteners

Alternator manufacturer and type



Denso three-phase alternator with integrated, fully electronic voltage regulator



Alternator speed for start of charge



1200 min-1



Alternator power

at voltage 13.5 V

max 820 W



Gear ratio of alternator



1 : 1.8



Alternator current

at engine rpm 4000 min-1

60 A



Alternator drive



Elasto belt 4PK582



Length of ELAST V-ribbed belt



582

+ 4
4

 mm





Alternator - rated current

at engine rpm 1000 min-1

28 A



Alternator speed



max 18000 min-1







13 - Fuel preparation and control



Designation

Condition

FR

Valid

Recommended fuel grade

Super unleaded

95 ROZ/RON



Regular unleaded (fuel grade, usable with power- and consumption-related restrictions)

91 ROZ/RON

Pressure differential between intakes

with throttle valves closed (engine idling)

max 25 mbar







16 - Fuel supply



Designation

Condition

FR

Valid

Usable fuel capacity



approx. 33 l



Reserve fuel



approx. 4 l







18 - Exhaust system



Designation

Condition

FR

Valid

18 30 - Exhaust pipe with catalytic converter or complete system

Emission control



3-way catalytic converter with lambda control







21 - Clutch



Designation

Condition

FR

Valid

clutch type



Single-plate dry clutch



Clutch actuation



Hydraulic

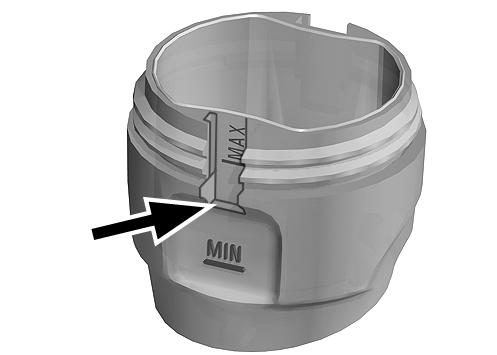

Clutch-fluid level (repairs)

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad\BILD\21\MODELLE\00\K40_11_B121005b.jpg

With new clutch liner, motorcycle upright and handlebars centred

Bottom edge of groove for reservoir cap catch



Fluids and lubricants

Vitamol V10

Clutch-fluid level (visual inspection)

Motorcycle upright and handlebars in straight-ahead position

It is impermissible for the clutch fluid level to drop.



21 21 - Clutch with driver plate

Diameter of clutch plate



180 mm



Clutch plate thickness

Wear limit; measured pressed together at rivets of clutch plate

4.5

+ 0.1
0.1

 mm





Distortion of driver plate

Lateral runout

max 0.1 mm



Distortion of thrust plate and housing cover



0.1...0.2 mm







Equipment trim-level variant:

0631



-



Enduro gearbox



23 - Gearbox



Designation

Condition

FR

Valid

gearbox type



Helical 6-speed gearbox with integral reaction damper, claw-action shift by sliding sleeves

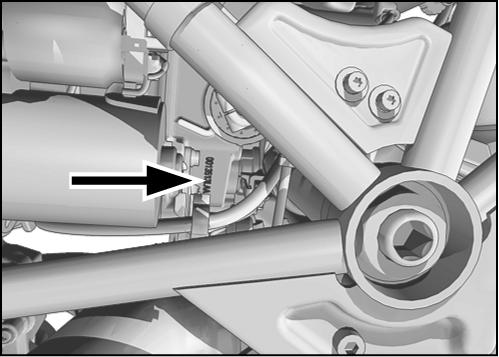

Location of gearbox serial number

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad\BILD\23\MODELLE\00\K25HPTD_23_001b.jpg



On side of gearbox housing, bottom left



Gearbox oil, capacity

to bottom edge of thread in filler neck

0.7 l



Fluids and lubricants

Castrol SAF-XO

23 21 - Gearbox shafts

Fully assembled length of gearbox intermediate shaft



181.85...181.90 mm



Predamper travel of gearbox input shaft



0.40...0.70 mm



Endplay of gearbox output shaft

Free gearwheel, 1st gear



0.15...0.30 mm



Total damper travel of gearbox input shaft



3.80...5.10 mm



Endplay of gearbox output shaft

Free gearwheel, 2nd gear



0.15...0.41 mm



Endplay of gearbox output shaft

Free gearwheel, 6th gear



0.15...0.35 mm



Fully assembled length of gearbox input shaft



162.00...162.05 mm



Deviation from zero of gearbox shafts

only if the appropriate zero gauge is used

0.00...−0.05 mm



Endplay of gearbox output shaft

Free gearwheel, 3rd gear



0.15...0.30 mm



Endplay of gearbox intermediate shaft

Free gearwheel, 5th gear



0.1...0.25 mm



Endplay of gearbox intermediate shaft

Free gearwheel, 4th gear



0.10...0.50 mm

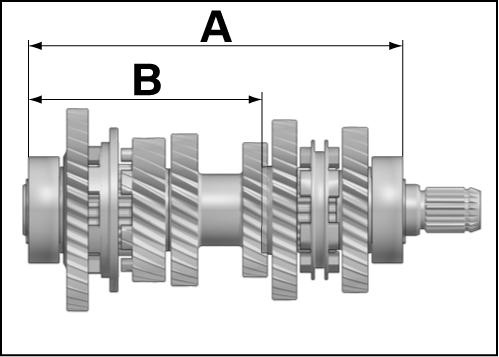

Fully assembled length of gearbox output shaft


Partial assembled length B (bearing for gear shift wheel, 1st gear - fixed wheel, 5th gear)

117.50...117.55 mm



Total assembled length A (bearing, gear shift wheel 1st gear - output-end bearing)

184.60...184.65 mm

23 22 - Gears

Gearbox transmission ratios

Primary transmission ratio

1,737



1st gear

2.600 (39:15 teeth) normal 2.375 (39:15 teeth)

2nd gear

1.696 (39:23 teeth)

3rd gear

1.296 (35:27 teeth)

4th gear

1.065 (33:31 teeth)

5th gear

0.939 (31:33 teeth)

6th gear

0.848 (28:33 teeth)

23 31 - Internal gearshift components

Selector shaft endplay



0.00...0.26 mm



Selector drum fully assembled length



141.4...141.5 mm



Shift fork contact face, 2nd/3rd gear

Width



4.825...4.900 mm



Sliding sleeve, 2nd/3rd gear, endplay



0.100...0.275 mm



Sliding sleeve, 1st/6th gears, shift-fork web width

Width



3.90...4.00 mm



Sliding sleeve 2nd/ 3rd gear, shift fork recess

Width



5.00...5.10 mm



Sliding sleeve, 1st/5th gears, shift-fork web width

Width



3.90...4.00 mm



Shift fork recess, 1st/6th gear

Width



4.050...4.125 mm



Gearshift fork recess 4th/5th gear

Width



4.050...4.125 mm



Shift fork for 4th/5th gears

Endplay



0.050...0.225 mm



Shift fork for 1st/6th gears, endplay



0.050...0.225 mm



Wear limit for endplay

Shift fork width/recess width or web width

max 0.45 mm







Equipment trim-level variant:

0416



-



Electronic Suspension Adjustment (ESA)



31 - Front axle, front-wheel steering



Designation

Condition

FR

Valid

Type of front suspension



BMW Telelever, with anti-dive top fork bridge, leading link pivot-mounted on engine and telescopic forks, central spring strut supported by leading link and front frame



Spring travel, front

At wheel

210 mm



Fork oil, capacity per fork leg



650 ml



Fluids and lubricants

Hydraulic fluid SAE 10

31 31 - Spring strut

Spring strut, front, type



Central spring strut with single-tube gas-filled shock absorber, electrically adjustable rebound damping and electro-hydraulically adjustable spring preload



Check dimension of spring base

Between shock absorber housing and spring seat, top

Indicator in instrument cluster: One-up (one helmet), one-up with luggage (one helmet and case), two-up (two helmets)

0 mm



Indicator in instrument cluster: Small mountain (light off-roading)

5...7 mm

Indicator in instrument cluster: Large mountain (severe off-roading)

11...13 mm

31 42 - Telescopic forks

Fixed fork tube outside diameter



41 mm



Fixed fork tube, run-out



max 0.1 mm







32 - Steering



Designation

Condition

FR

Valid

32 72 - Handlebar lever

Play at clutch lever



no play (hydraulic actuation)







Equipment trim-level variant:

0416



-



Electronic Suspension Adjustment (ESA)



33 - Rear axle, rear-wheel drive and rear-wheel guidance



Designation

Condition

FR

Valid

Type of final drive



Shaft drive with bevel gears



Type of rear suspension



BMW EVO Paralever; cast light-alloy single swinging arm with two joints and torque reaction link

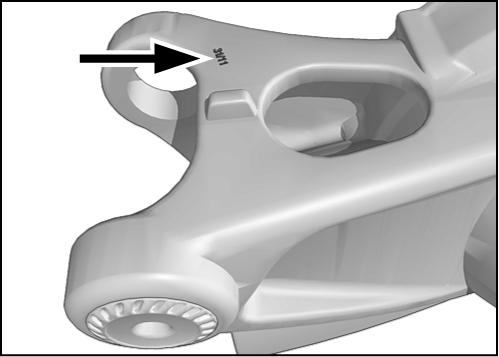

Number of teeth in bevel gears (gear ratio)

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad\BILD\33\MODELLE\00\K25HPTD_33_001b.jpg



32:11

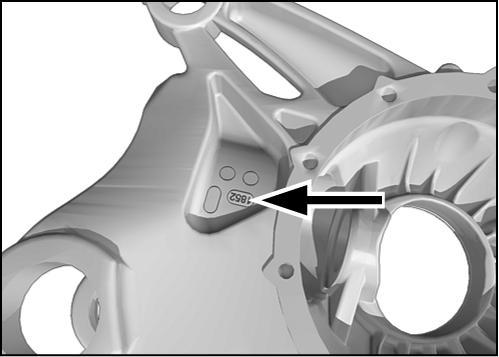

Machining dimension of the bevel gears

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad\BILD\33\MODELLE\00\K25HPTD_33_002b.jpg



Stamped into inside of final-drive housing

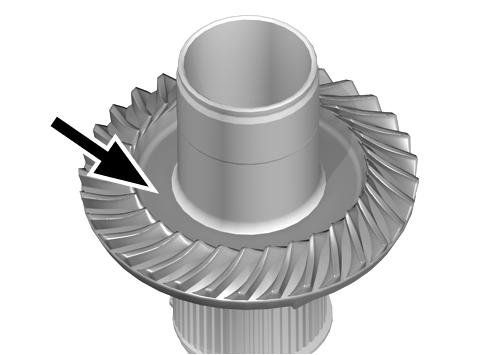

Labelling on crown wheel

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad\BILD\3312\MODELLE\00\K40_11_B133041b.jpg



Between hub and teeth



Play at rear wheel

Component temperature max 35 °C

0.5 mm



Rear-wheel drive, oil capacity

Initial filling

200 ml



Fluids and lubricants

Castrol SAF-XO

Rear-wheel drive, oil capacity

Oil change

180 ml



Fluids and lubricants

Castrol SAF-XO

33 10 - Rear-wheel drive

Gear ratio of final drive



2.91 : 1



33 12 - Crown wheel and pinion with bearings

Backlash of final-drive unit



0.1...0.22 mm



33 52 - Shock damper

33 53 - Springs with mounts

Type of rear suspension



Central spring strut with single-tube gas-filled shock absorber, electrically adjustable rebound damping and electro-hydraulically adjustable spring preload



Spring travel at rear wheel



220 mm



Check dimension of spring base

Between shock absorber housing and spring seat, top

Indicator in instrument cluster: One-up (one helmet)

0 mm





Equipment trim-level variant:

0630



-



BMW Motorrad Integral ABS II



34 - Brakes



Designation

Condition

FR

Valid

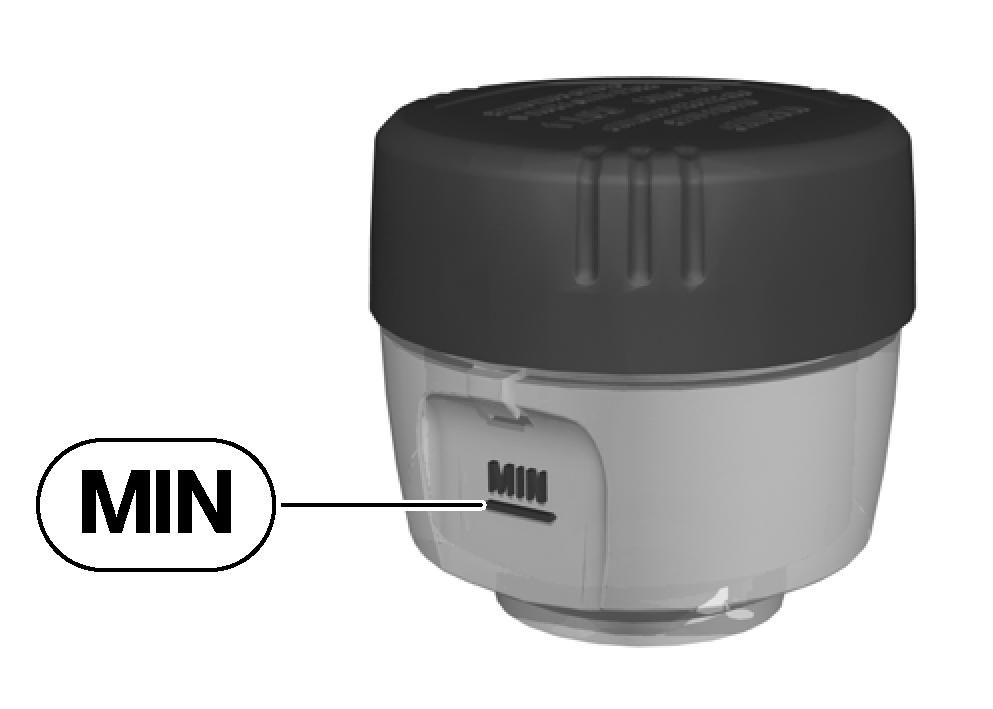

Brake fluid level, front

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad\BILD\3411\MODELLE\00\K40_11_B134019b.jpg

Brake-fluid reservoir horizontal, motorcycle upright

Do not permit the brake fluid level to drop below the MIN mark.



Fluids and lubricants

Brake fluid

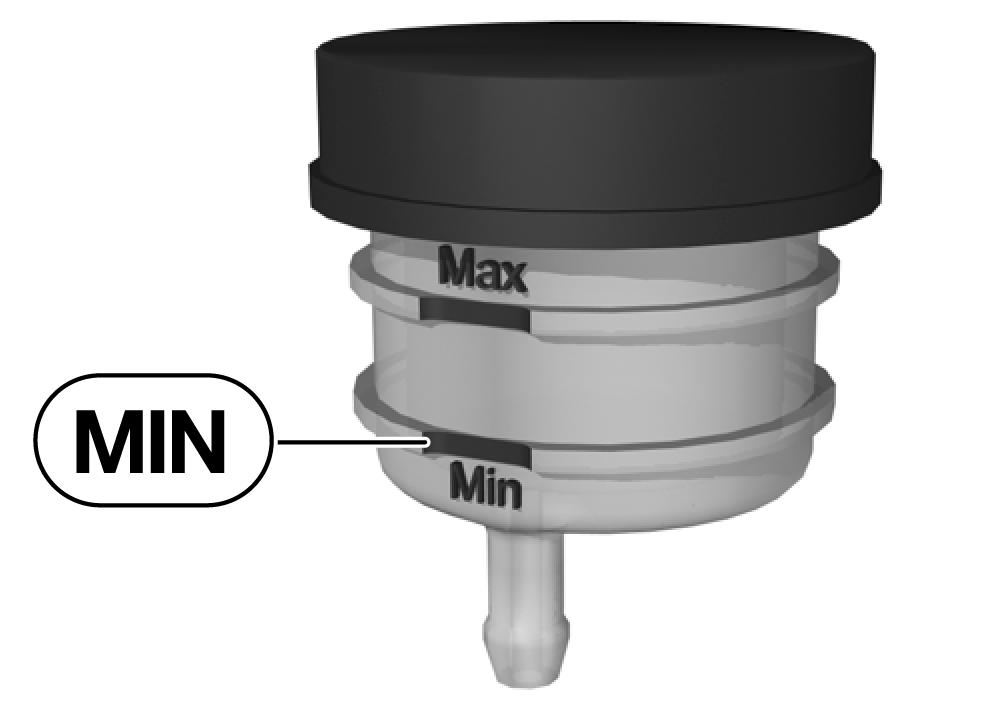

Brake fluid level, rear

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad\BILD\3421\MODELLE\00\K40_11_B134030b.jpg

Brake-fluid reservoir horizontal, motorcycle upright

Do not permit the brake fluid level to drop below the MIN mark.



Fluids and lubricants

Brake fluid

34 11 - Front brake

Type of front brake



Hydraulically operated twin disc brake with 4-piston fixed calipers and floating brake discs



Brake-pad material, front



Sintered metal



Brake disc thickness, front

When new

4.5 mm



Wear limit

4 mm

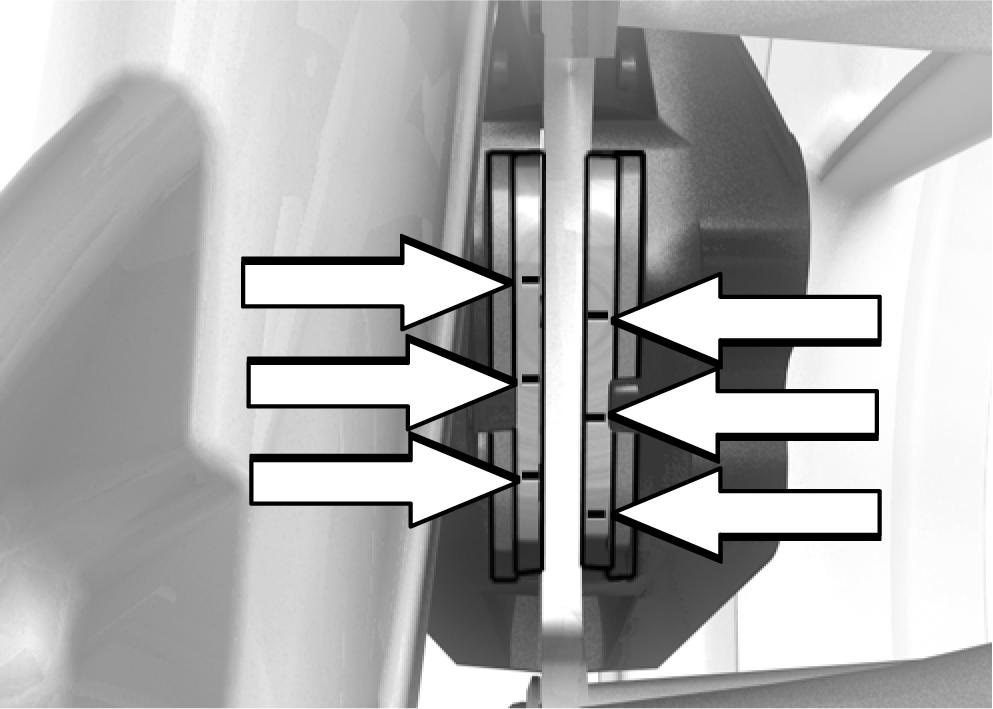

Brake-pad wear limit, front


Friction pad only, without backing plate. The wear indicators (grooves) must be clearly visible.

1.0 mm



Brake disc diameter, front



305 mm



Brake disc lateral runout, front

At circumference

max 0.15 mm



34 21 - Rear brake

Type of rear brake



Hydraulically operated disc brake with 2-piston floating caliper and fixed disc



Brake disc diameter, rear



265 mm



Brake-pad material, rear



Sintered metal

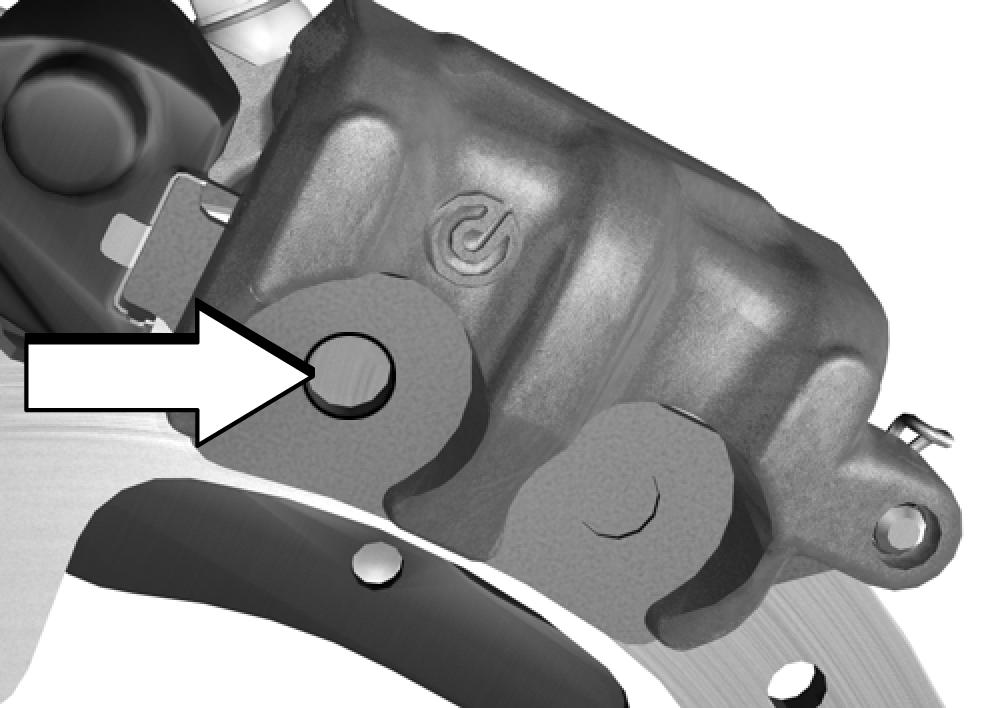

Brake-pad wear limit, rear

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad\BILD\3421\MODELLE\00\K25_03_B134004b.jpg

Friction pad only, without backing plate. Make sure that the brake disc is not visible through the bore in the inboard brake block.

1.0 mm



Brake disc thickness, rear

When new

5 mm



Wear limit

min 4.5 mm

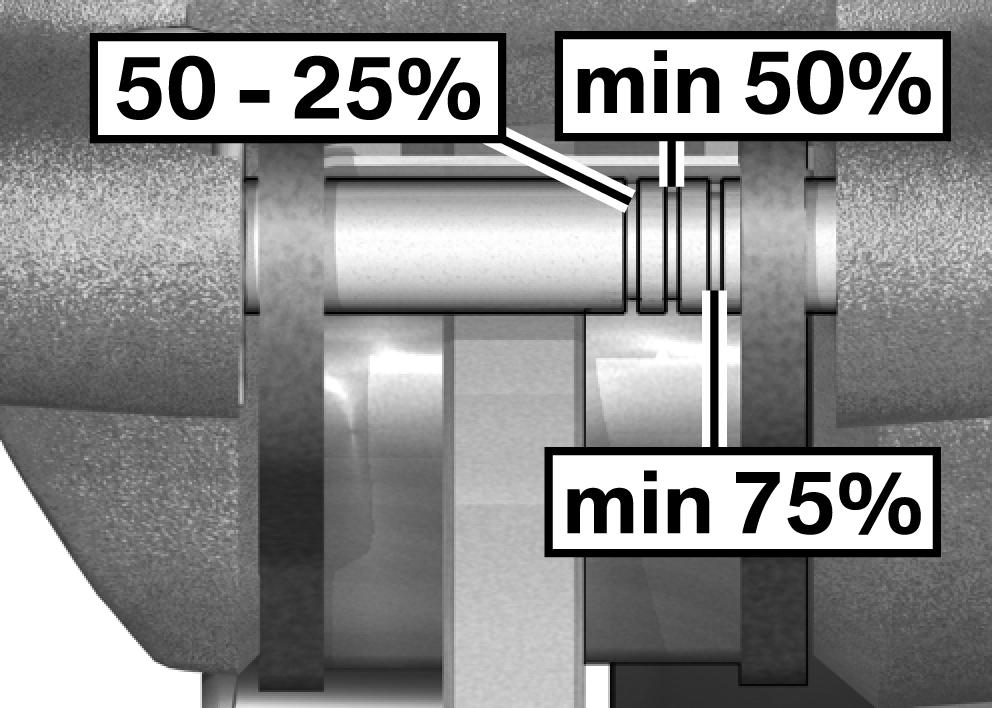

Brake-pad wear indicator


3 rings visible

Brake-pad thickness min. 75 %



2 rings visible

Brake-pad thickness min. 50 %

1 ring visible

Brake-pad thickness 50-25 %

No ring visible

Replace brake pad

Brake disc lateral runout, rear

at outside circumference, components cooled

max 0.35 mm



34 32 - Brake lines

Front/rear brake pipe, type



Stahlflex hose



34 51 - Mechanical, hydraulic components

Sensor ring, front, number of teeth



48 teeth



Sensor ring, rear, number of teeth



48 teeth



34 52 - Electronic components

Speed sensor, front, clearance from sensor ring



0.2...1.7 mm



Speed sensor, front, type



active sensor



Speed sensor, rear, type



active sensor







35 - Foot operation



Designation

Condition

FR

Valid

35 21 - Footbrake lever with connecting linkage

Play, footbrake lever

between frame and stop, footbrake lever

2.5

+ 0.5
0.5

 mm









36 - Wheels and tyres



Designation

Condition

FR

Valid

36 30 - Motorcycle wheels

Permissible front-wheel imbalance



max 5 g



Permissible rear-wheel imbalance



max 45 g



Balancing weight for rear wheel

Weight must be divided equally across both sides and weights attached to rim on left and right.



max 80 g



Balancing weight for front wheel

Weight must be divided equally across both sides and weights attached to rim on left and right.



max 80 g



36 31 - Wheels with bearings

front wheel type



Cross-spoked wheel with 40 spokes, MT H2



rear wheel rim size



4.00" x 17"



front wheel rim size



2.50" x 19"



rear-wheel type



Cross-spoked wheel with 40 spokes, MT H2



Vertical runout, front wheel



max 1.7 mm



Lateral runout, front wheel



max 1.7 mm



Vertical runout, rear wheel



max 1.7 mm



Lateral runout, rear wheel



max 1.7 mm



36 32 - Tyres

Tyre designation, front



110 / 80 - 19



Tyre pressure, front

one-up, tyre cold

2.2 bar



two-up and/or with luggage, tyre cold

2.5 bar

Tyre designation, rear



150 / 70 - 17



Tyre tread depth, front and rear

For Germany only

min 1.6 mm



Outside Germany

Country-specific legal requirements

Tyre pressure, rear

one-up, tyre cold

2.5 bar



two-up and/or with luggage, tyre cold

2.9 bar

Wheel valve test pressure



4 bar



Recommended tyre sets



You can obtain an up-to-date list of approved tyres from your authorised BMW Motorrad dealer or on the Internet at "www.bmw-motorrad.com".







Equipment trim-level variant:



Auxiliary headlights



61 - General vehicle electrics



Designation

Condition

FR

Valid

61 13 - Plug, terminal

Electrical rating of on-board sockets



5 A



Fuse for auxiliary headlight



7.5 A



61 21 - Battery with holder

battery type



AGM (Absorbent Glass Mat) battery



battery rated voltage



12 V



battery rated capacity



14 Ah



61 31 - Switches and relays

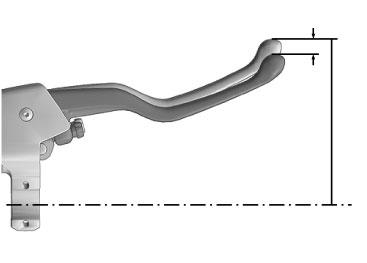

Travel of handlebar lever for adjusting the switch point of the microswitch

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad\BILD\61\MODELLE\00\K25HPTD_61_001b.jpg



5...17 mm







Equipment trim-level variant:

0562



-



Auxiliary headlights



63 - Lights



Designation

Condition

FR

Valid

63 10 - Front lights, position lights and side lights

Bulb for parking light



W5W / 12 V / 5 W



63 12 - Headlight

Headlight type



Free-form twin headlights



Bulb for high-beam headlight



H7 / 12 V / 55 W



Bulbs for the low-beam headlight



H7 / 12 V / 55 W



Distance between headlight and vertical surface

For headlight adjustment



10 m



Distance between light/dark cut-off and mark at height of centre of headlight

Suspension set to basic setting and motorcycle loaded with 85 kg

15 cm



63 13 - Flashing turn indicators, front

Bulbs for flashing turn indicators, front



RY10W / 12 V / 10 W



63 17 - Foglights, additional lights

Bulb for auxiliary headlight



H11 / 12 V / 55 W



Distance between light/dark cut-off and mark at height of centre of auxiliary headlight

Motorcycle loaded with  85 kg

−20 cm



Distance between auxiliary headlight and vertical surface

For headlight adjustment



10 m



63 21 - Rear-light cluster

Bulb for tail light/brake light



LED / 12 V



Maximum number of defective LEDs in rear-light unit

Brake light/rear light

1



Number-plate light (white)

none

63 23 - Flashing turn indicators, rear

Bulbs for flashing turn indicators, rear



RY10W / 12 V / 10 W







Equipment trim-level variant:



Aluminium case



Aluminium topcase



71 - Parts and accessories for engine and frame and suspension



Designation

Condition

FR

Valid

71 54 - Accessories for luggage carrier

Payload of aluminium cases



see label in case



Maximum permissible speed for riding with aluminium cases fitted to the motorcycle



see label in case



Payload of aluminium topcase



see label in topcase



Maximum permissible speed for riding with aluminium topcase fitted to the motorcycle



see label in topcase
