34 11 220 Removing/installing front brake discs

  R 1200 GS Adventure (0380)








Note

Increased lateral runout of the brake disc causes disc-thickness variation ("brake judder").


  Preparatory work


Releasing front brake calipers



Removing front wheel

  Core activity

(-) Removing front brake discs

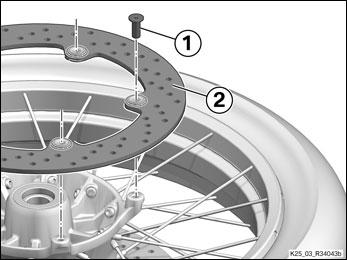

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad\BILD\3411\MODELLE\00\K25_03_R34043b_preview.jpg

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif

Remove screws (1).

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif

Remove brake disc (2).

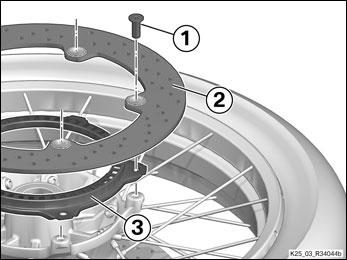

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad\BILD\3411\MODELLE\00\K25_03_R34044b_preview.jpg

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif

Remove screws (1).

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif

Remove brake disc (2) and sensor ring (3).


(-) Installing front brake discs

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif

Clean the threads.



Note

When installing the brake disc, make sure that there is no dirt or residues of thread-locking compound between the wheel and the brake disc. The mating faces must be smooth and clean.

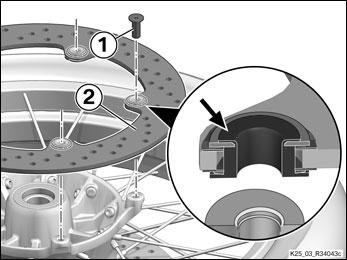

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad\BILD\3411\MODELLE\00\K25_03_R34043c_preview.jpg

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif

Lay brake disc (2) on the wheel rim with the beading (arrow) of the rivets to the outside.

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif

Install screws (1).

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad\SYMB\KG\MODELLE\00\Anziehdrehmoment.gif Tightening torques

Brake disc to front wheel

Pan-head screw, M8 x 22 - 10.9, Replace screw

Micro-encapsulated

tighten by stages in diagonally opposite sequence



19 Nm

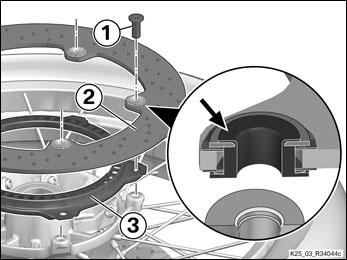

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad\BILD\3411\MODELLE\00\K25_03_R34044c_preview.jpg

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif

Clean the threads.

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif

Lay sensor ring (3) on the wheel rim.

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif

Lay brake disc (2) on the wheel rim with the beading (arrow) of the rivets to the outside.

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif

Install screws (1).

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad\SYMB\KG\MODELLE\00\Anziehdrehmoment.gif Tightening torques

Brake disc to front wheel

Pan-head screw, M8 x 22 - 10.9, Replace screw

Micro-encapsulated

tighten by stages in diagonally opposite sequence



19 Nm



(-) Install the front wheel

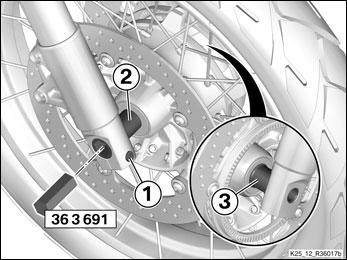

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad\BILD\3630\MODELLE\00\K25_12_R36017b_preview.jpg

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif

Seat spacing bushing (3) on the wheel hub at the left.

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif

Carefully roll the front wheel into position between the fork legs.

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif

Clean and lubricate quick-release axle (2).

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad\SYMB\KG\MODELLE\00\betriebsm.gif Fluids and lubricants

Optimoly TA

High-temperature assembly grease

18 21 9 062 599


D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif

Hand-tighten quick-release axle (2) with hexagon (No. 36 3 691).

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif

Remove the straps holding down the motorcycle at the rear.

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif

Firmly compress the front forks several times.

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif

Firmly tighten stub axle (2).

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad\SYMB\KG\MODELLE\00\Anziehdrehmoment.gif Tightening torques

Quick-release axle in axle holder

M24 x 1.5

50 Nm



D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif

Tighten axle clamping screw (1).

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad\SYMB\KG\MODELLE\00\Anziehdrehmoment.gif Tightening torques

Clamping screw (quick-release axle) in slider tube

M8 x 35

19 Nm




(-) Measuring brake-disc runout

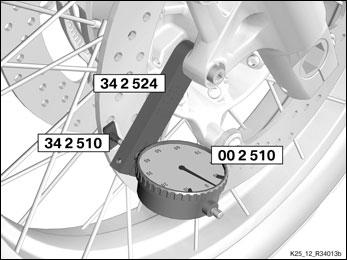

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad\BILD\3411\MODELLE\00\K25_12_R34013b_preview.jpg

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif

Install dial gauge (No. 00 2 510) in dial-gauge holder (No. 34 2 524) and install measuring adapter (No. 34 2 510).

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif

Mount dial gauge holder on the brake caliper mount.

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif

Align dial gauge in such a way that the measuring adapter is in contact with the brake disc close to the outer circumference and the dial gauge is slightly preloaded.


Test

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif

Set the dial gauge to "0".


D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif

Slowly turn the wheel through at least one complete revolution and observe the dial gauge reading.


D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/angle.gif

The sum of the positive and negative dial-gauge readings is the total runout.


D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad\SYMB\KG\MODELLE\00\techdat.gif Technical data

Brake disc lateral runout, front

At circumference

max 0.15 mm






Result: Lateral runout is excessive.

  Measure:

D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif

Check positioning of the brake disc/wheel rim.


D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif

Check the wheel rim for damage.


D:\BMW\RepROM_K2x_GS\Datas\RepRom\BMW-Motorrad/imgs/icon/bullet.gif

If necessary, check the brake disc.
